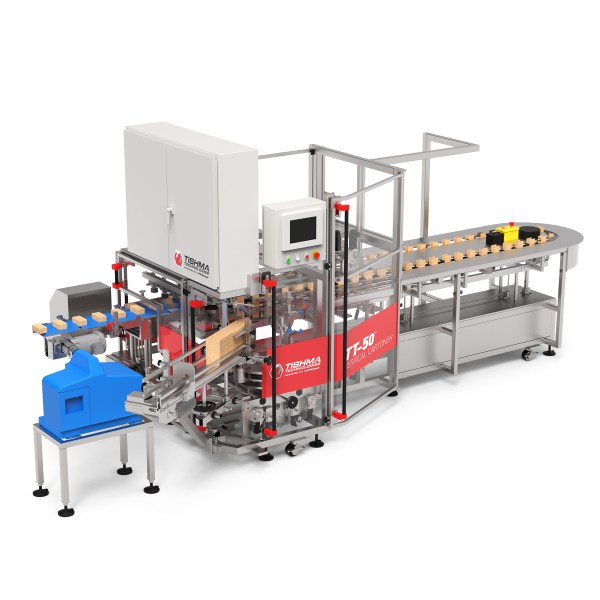

TT-50 Vertical CartonerThe Vertical, Perfected.

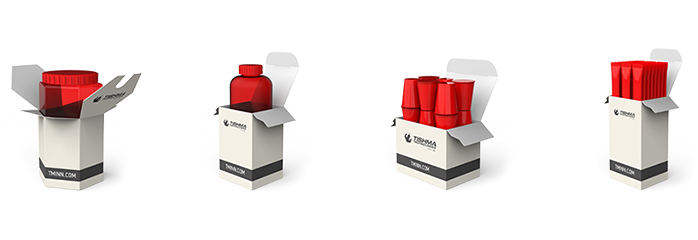

TT-50 Carton Styles and Applications
Tuck & Glue ● Gable Top ● Auto-bottom ● Hexagonal ● Flip-Top
TECHNICAL SPECIFICATIONS
| TYPE | Top Load Cartoner |
| MODE | Continuous motion, intermittent optional |
| CARTON POCKET CENTER | 3. 75, 5.0, 7 .5, or 15.0 inches |
| SPEED | Variable to 140 CPM, depending upon application and Up to 100 cartons per minute |
| CARTON FEED | 36+” powered magazine with a rotary carton feeder |
| CARTON CLOSING | Straight or reverse tuck and/or hot melt glue |
| CARTON LOADING | Collated and pushed |
| FRAME | Welded tubular stainless steel. hinged cover panels w/ safety electrical interlocks |
| DRIVE | Allen Bradley PLC’s and electrical components |
| ADJUSTMENTS | Lead screws with calibrated scale references |
| DIMENSION | Request specific model floor plan |
| POWER REQ’S | Wired to accommodate your plants electrical requirements |
| AIR REQ’S | Approx. 6.5 CFM 60 psi |
| TOOLING | Available for tuck, glue, header, gable, flip-top and hex style carton styles |
| HAND LOAD MODELS | Available in 4 standard lengths (120”, 150”, 180”, 210”) |
