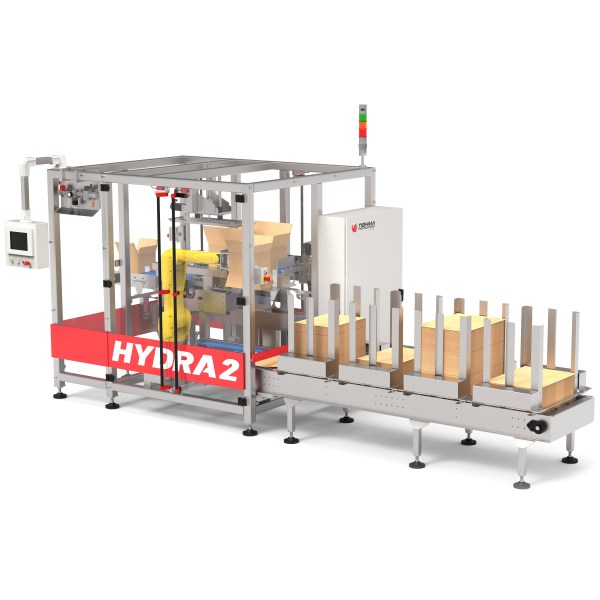

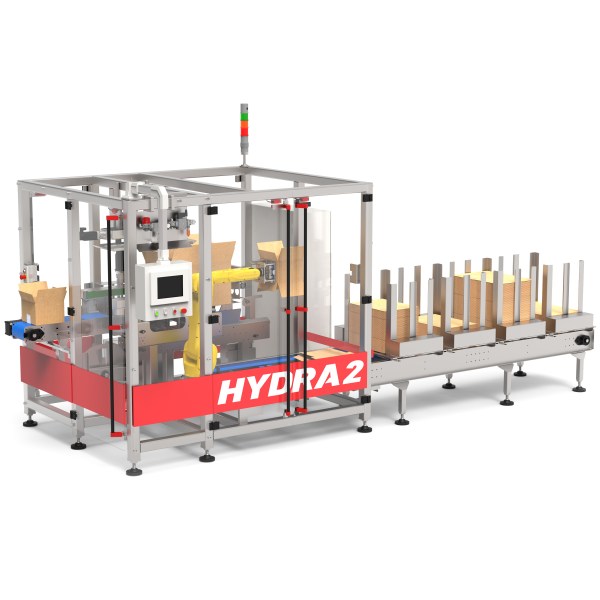

Hydra™2Robotic Random Case Erector
TECHNICAL SPECIFICATIONS
| SPEED | (dependent on closure type) Up To 15 Cases/Min. |
| CASE SIZE RANGE | (Min-Max) 9” x 6” x 4” – 22” x 18” x 14” |
| CASE MAGAZINES | (Expendable to accommodate requirements) 4 |
| MAGAZINE CAPACITY (Each) | ~100 Cases |
| ROBOT OPTIONS | Yaskawa Motoman, Fanuc |
| PLC & CONTROLS | Allen-Bradley |
| FOOTPRINT | (Length – approx. with 4 magazines) W: 6’9” L: 16’6“ H: 8’9” |
| POWER REQUIREMENTS | 480 VAC 3 – Phase 60 Hz with ground |
| AIR REQUIREMENTS | 12.0 CFM @ 80 psi, normal dry plant air |
| BOTTOM CLOSURE METHODS | IPG ET Series Pressure-Sensitive or Water-Activated Taping Head |
Related Products
-

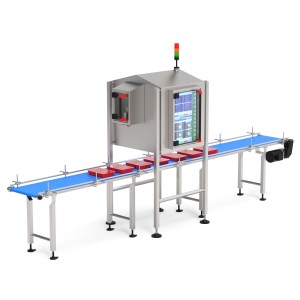

SafeSeal-AI
A.I. Vision Seal Inspection
Tishma Technologies has harnessed the power of A.I. to offer an unbelievably easy to use in-line heat seal inspection system for the food and medical industries. We applied our deep-learning A.I. vision tools to thermal images to find most sealing defects - including those that are almost impossible to find...
View Product -
AMS™ – Auto Mailer System
Inline Paper Mailer Solution
Higher productivity levels relating to mailer processes have driven the need for further automation with a sustainable approach. IPG’s AMSTM (Auto Mailer System) is a revolutionary design that automatically creates a paper mailable package around each order. The system uses right-size technology to adjust the package size to the product...
View Product -

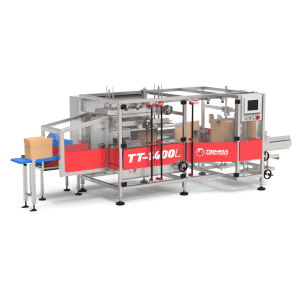

TT-1400E
