HIGH-SPEED CHEWABLE CANDY VERTICAL CARTONER
The TT-400 is a continuous motion high-speed top load cartoner that can reach speeds of 600+ cartons per minute. Designed and built for cartoning of free-flowing candy products, it is perfect for primary and secondary packaging of chewing gum, hard candy, dried fruits, and similar products.
![TT-400 600 Speed Icon](https://www.tminn.com/wp-content/uploads/sites/5/2023/03/tt-400_600speed.png?w=150)

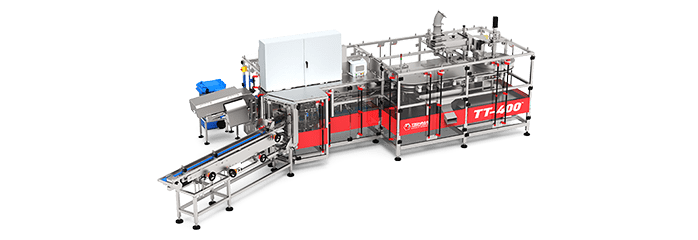

![TT-400 Main Image](https://www.tminn.com/wp-content/uploads/sites/5/2023/05/tt-400_verticalcartoner.png?w=698)
PRODUCT CARTONING PROCESS
![](https://www.tminn.com/wp-content/uploads/sites/5/2023/05/backgroundimage2.jpg)
![Candy Feed Process](https://www.tminn.com/wp-content/uploads/sites/5/2023/05/candycartonerfeeding.png)
![TT-400 Red Logo](https://www.tminn.com/wp-content/uploads/sites/5/2023/05/tt-400_redlogo.png)
TECHNICAL
SPECIFICATION
TYPE | Top Load Cartoner |
MODE | Continuous Motion |
SPEED | 600-750 Cartons Per Minute |
PRODUCT INFEED | Volumetric Filler and UltraTrack Handling System |
DIMENSIONS | 204″ x 76″ x 68″ |
CONTROLS | Allen Bradley PLC |
DRIVE | Allen Bradley Servo Motor, Line Shaft |
POWER REQUIREMENTS | 480 V, 3 Phase, 60Hz |
AIR REQUIREMENTS | 12.0 CFM @ 60 psi |
CARTON STYLE | Theater Box, Standard Glue-Sealed Carton |
TT-400 HIGH-SPEED TOP LOAD CARTONER

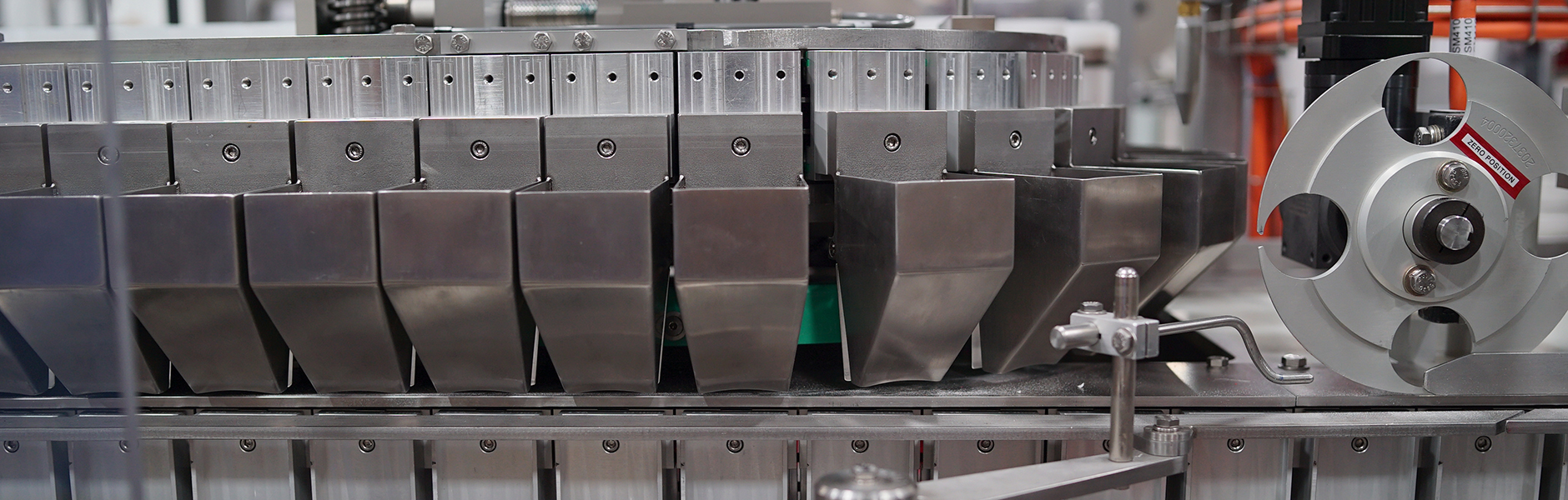

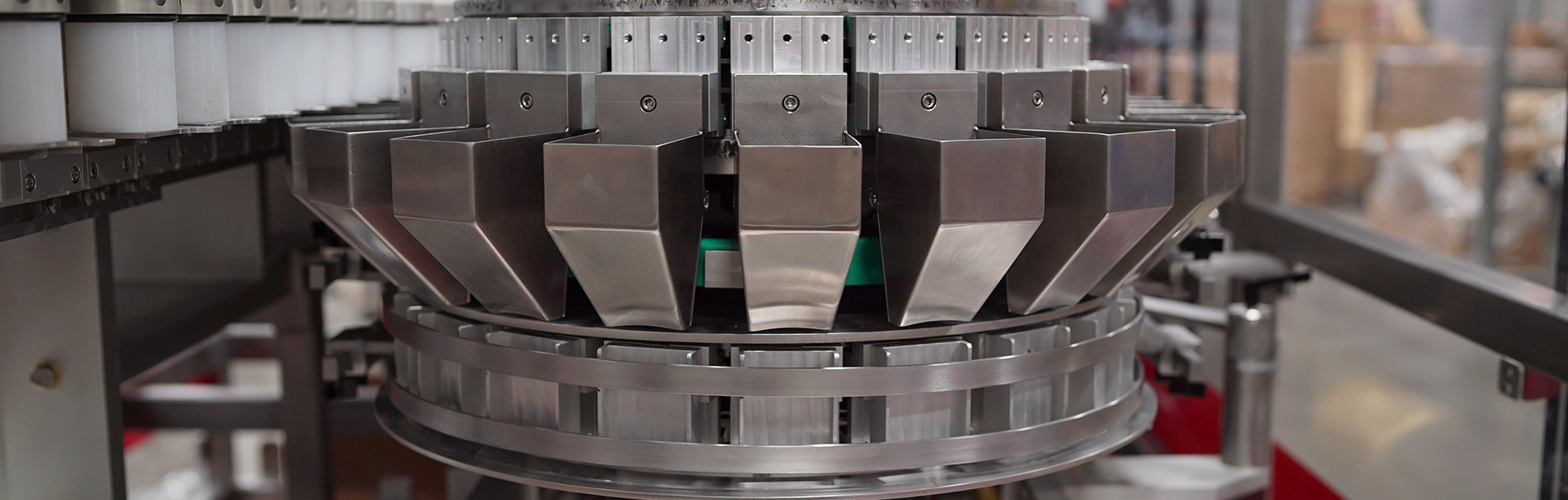

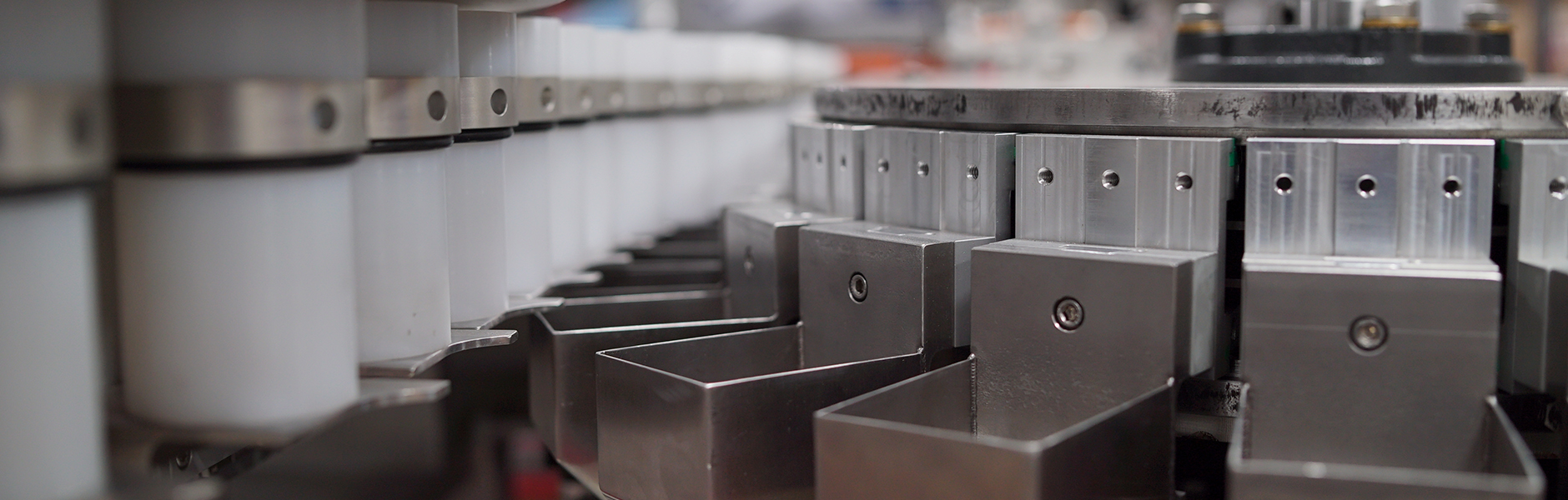

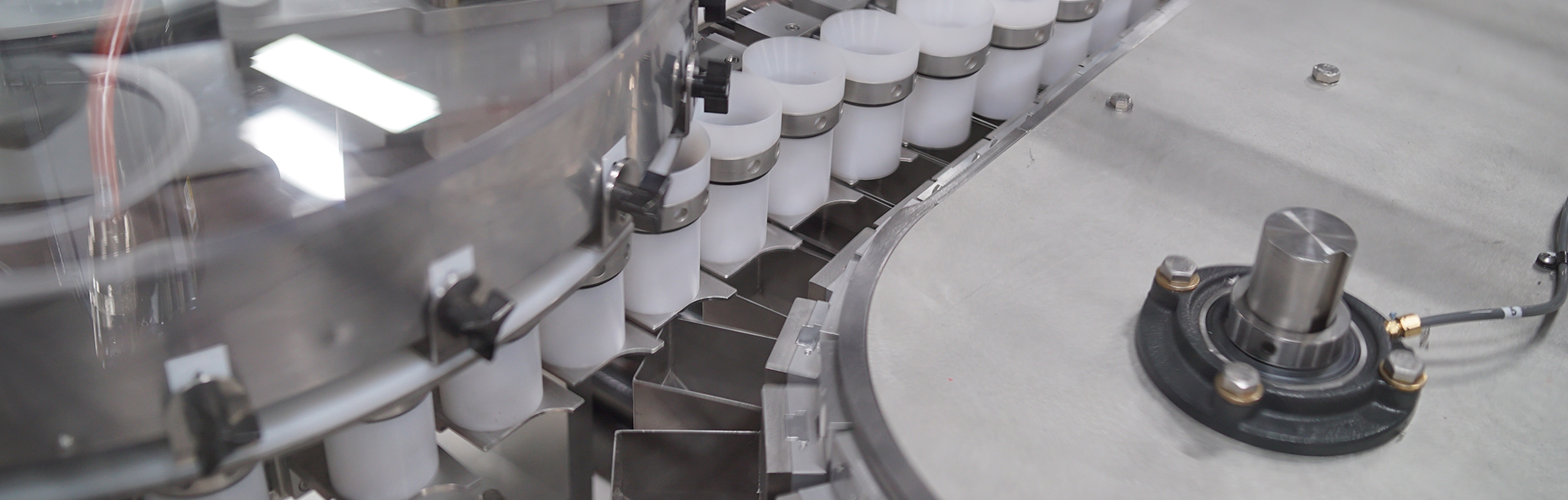

This high-speed top load cartoner supports multiple carton sizes and features easy changeover. The TT-400 features a Patented UltraTrack high-speed volumetric cup filler that provides no-carton/no-product, no-product/no-carton functionality. Stainless steel construction and simple, open design allow for easy washdown of all exposed surfaces.
DIMENSIONS & FLOOR PLAN
TT-400 features an overall compact footprint, so you can rest assured it will fit your floor space.
Reliable and portable with simple operation and a user-friendly interface, TT-400 will be up and running in no time.
TT-400 is a powerful and efficient cartoner that meets the highest standards with state-of-the-art simplicity, built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks.

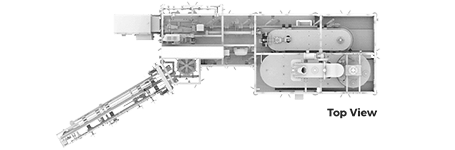

![TT400 Dimensions Top View](https://www.tminn.com/wp-content/uploads/sites/5/2023/05/candycartoner_floorplantop.png?w=455)

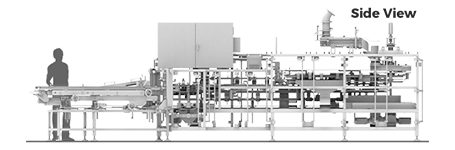

![TT400 Dimensions Side View](https://www.tminn.com/wp-content/uploads/sites/5/2023/05/candycartoner_floorplanside.png?w=455)
