CARTONER MACHINE FOR OIL FILTERS
The TT-600 oil filters cartoner machine is a continuous motion horizontal cartoner that can reach speeds up to 500 cartons per minute. Designed and built for packaging oil filters into a box, it is perfect for the secondary packaging of water filters, air filters, or any cylindrical product like fabric rolls, bottles, cans, or tubes.
This packaging equipment is available with different coding, labeling, and inserting solutions like modular coupon placers, leaflet inserters, code engravers, or printers. Flexo-Tray® models, coupled with Smart Loader, Smart Flighter, and Sequential Transfer product handling devices, offer unique benefits and system design flexibility.
PRODUCT CARTONING PROCESS
TECHNICAL
SPECIFICATION

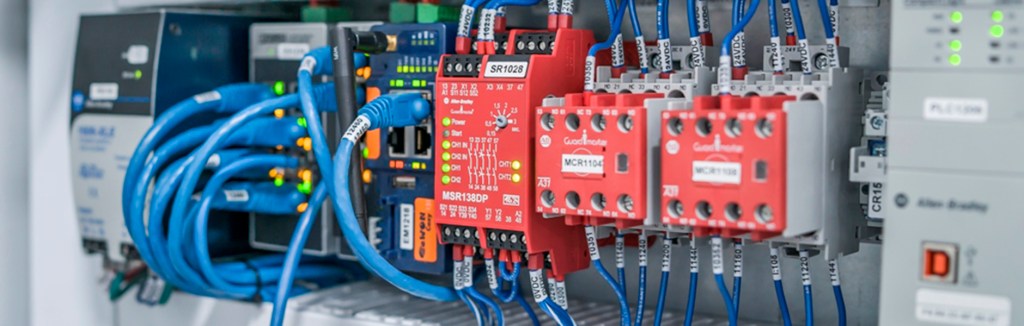

| TYPE | Side Load Cartoner |
| MODE | Continuous Motion |
| SPEED | Variable to 500 CPM, upon model and application |
| CARTONS | 1.875″ to 16″ depending upon model |
| CARTON FEED | Powered carton magazine and rotary carton placer |
| PRODUCT LOADING | Article buckets articulate in to carton score lines |
| SENSING SYSTEMS | No product/ no carton and no carton/ no load (with automatic product discharge) |
| CARTON CLOSING | Straight or reverse tuck, or hot melt glue |
| FRAME | Welded tubular stainless steel of open, sanitary design |
| DRIVE | Servo driven with line shaft |
| CONTROLS | Allen Bradley PLC and components |

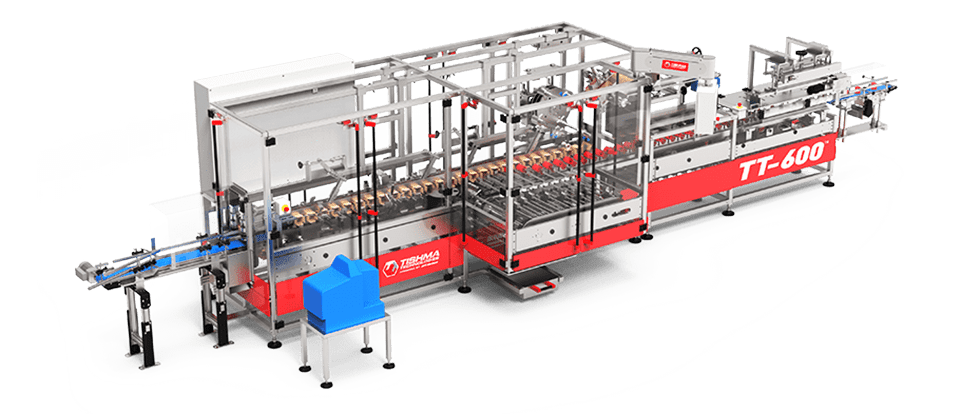

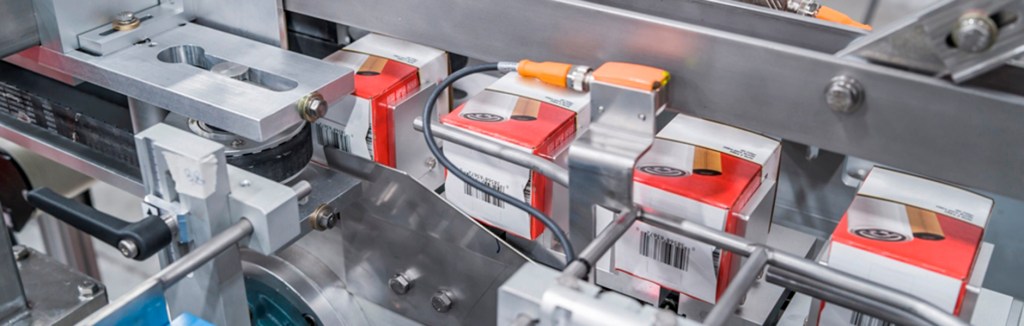

TT-600 HORIZONTAL CARTONER

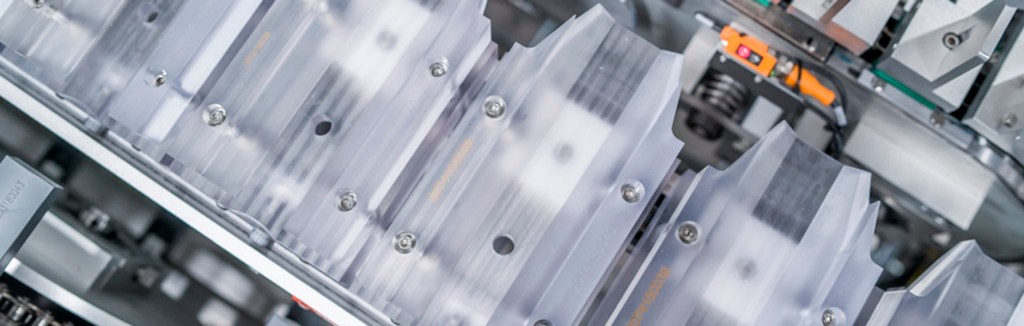

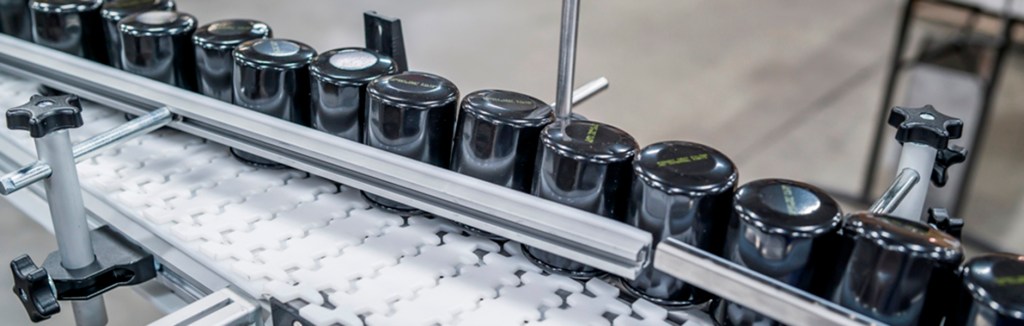

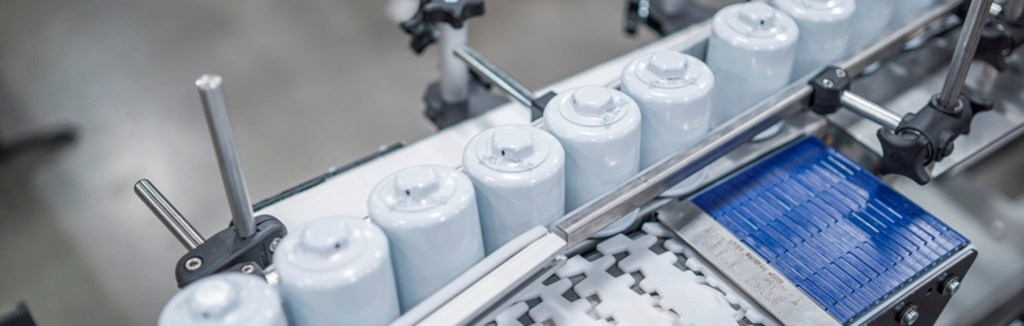

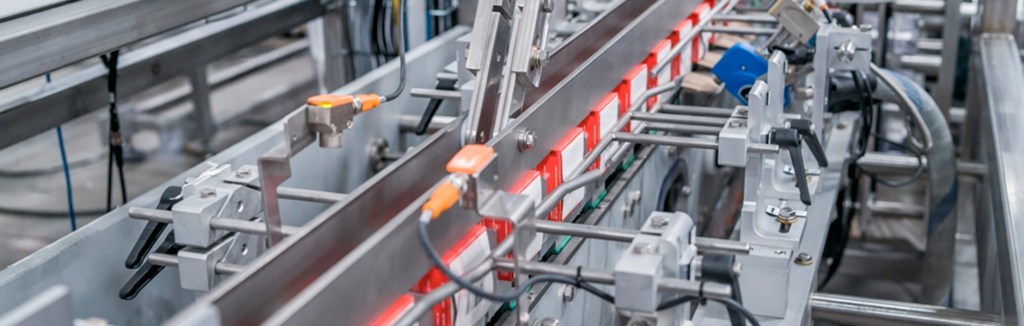

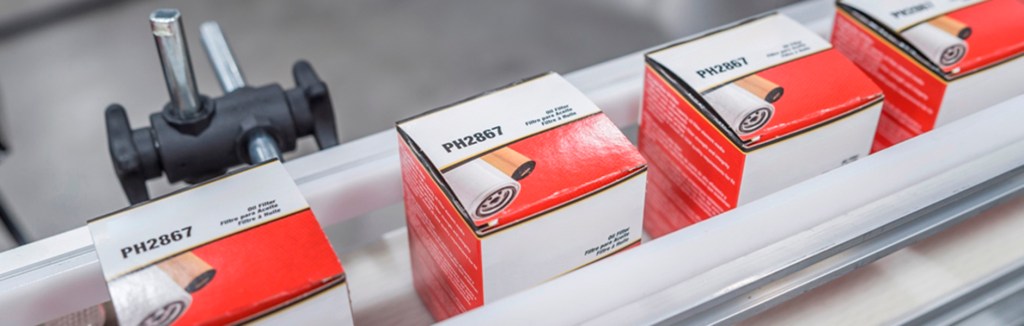

The TT-600 oil filters cartoner machine side-load cartoner supports multiple carton sizes and features a quick and easy servo-assisted change-over. The machine receives oil filters at random at a speed of 200 products per minute into timing screw infeed. The screw lays down the filter into the article buckets of the TT-600 Horizontal Cartoner. Upon detection of the filter, a carton is erected, and the filter is positively pushed into the carton. When filled, the carton is glue sealed on the bottom and top. The carton is printed with a unique code, the code is verified, and the completed carton is discharged. Integrated sensing systems provide no product/ no carton and no carton/ no-load functionality, thus eliminating empty cartons or damaged products.
The TT-600 features stainless steel construction and a simple open design, which allow for easy washdown of all exposed surfaces.
DIMENSIONS & FLOOR PLAN
TT-600 features an overall compact footprint, so you can rest assured it will fit your floor space.
TT-600 is available with automatic product transfer, servo-driven collating devices, extended article bucket conveyors, and product confines.
Built from welded tubular stainless steel with hinged cover panels and safety electrical interlocks, TT-600 is a powerful and efficient cartoner that meets the highest standards with state-of-the-art simplicity.
CAN BE INTEGRATED WITH
CASE PACKERS
TRAY PACKERS
